LED路燈
LED road lamp
適用范圍：
適用于城市支路，二級以下公路，人行道，廣場，學校，公園，居住區，廠區以及其他需要室外功能性照明的場所。
Scope of application:
Applicable to the city branch, the following two roads, sidewalks, squares, schools, parks, residential district, factory and other places that require outdoor functional lighting.
基本技術參數：Specification
|
型號規格
Model specification
|
額定電壓
Rated voltage（V）
|
功率
Power（W）
|
防爆標志
Explosion proof marks
|
防腐等級
Anticorrosion grade
|
防護等級
Protection grade
|
|
LD-L085
|
AC85-265V
|
85W
|
ExdII CT6
|
WF2
|
IP66
|
|
LD-L120
|
AC85-265V
|
120W
|
ExdII CT6
|
WF2
|
IP66
|

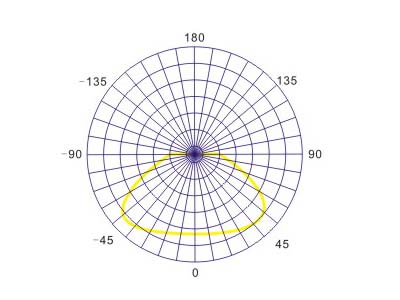

配光曲線：Light distribution curve:

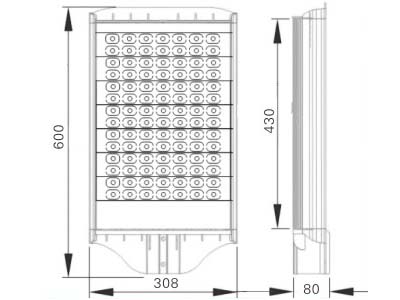

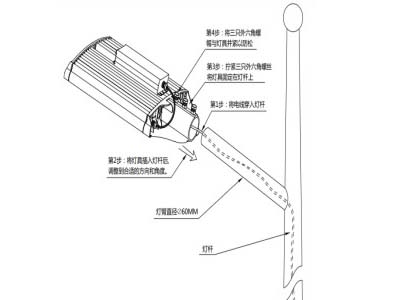

外形尺寸及安裝方式 Outline dimensions and mounting method
